Rasperry Pi RetroPie Emulation Station Install Walkthrough (Video Games on Pi)

retropie video game emulation raspberry pi

This guide will walk you through the installation and configuration of RetroPie (a Linux distribution with Emulation Station pre-configured) and where to source some legal retro game console ROMS.

RetroPie is a ready-to-use Linux OS for your Raspberry Pi, which has everything already configured and ready to emulate NES, SNES, GameBoy, Nintendo 64, Playstation, Sega, and many other game consoles.

The installation and configuration steps are super easy.  I’ve documented them below with screenshots and notes.  Once RetroPie is up and running, I’ll install a free (and legal) NES ROM to test.



Installing RetroPie on a Raspberry Pi

The first step to getting RetroPie set up is to download it.



retropie 1 e1635709753235

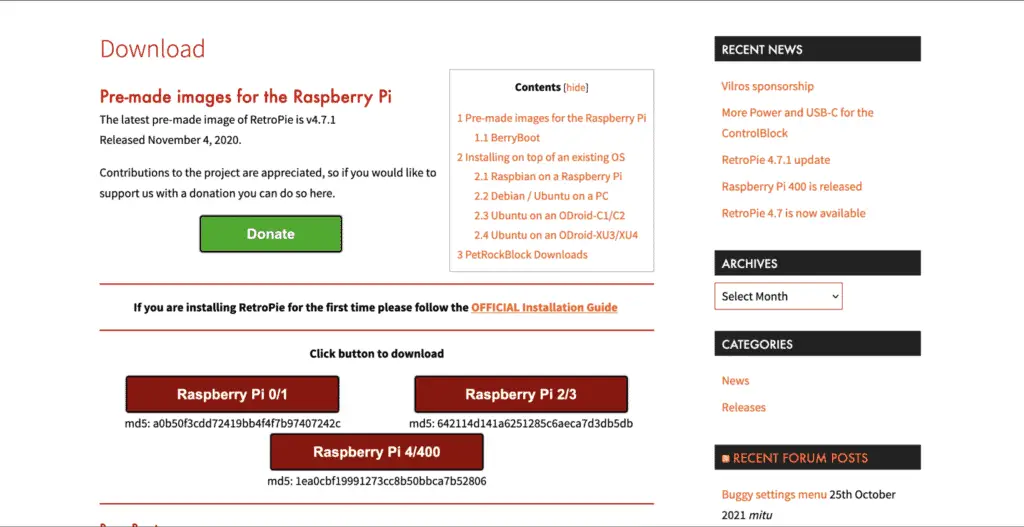

Download the RetroPie installation image for your Raspberry Pi model from https://retropie.org.uk/download/



retropie 2

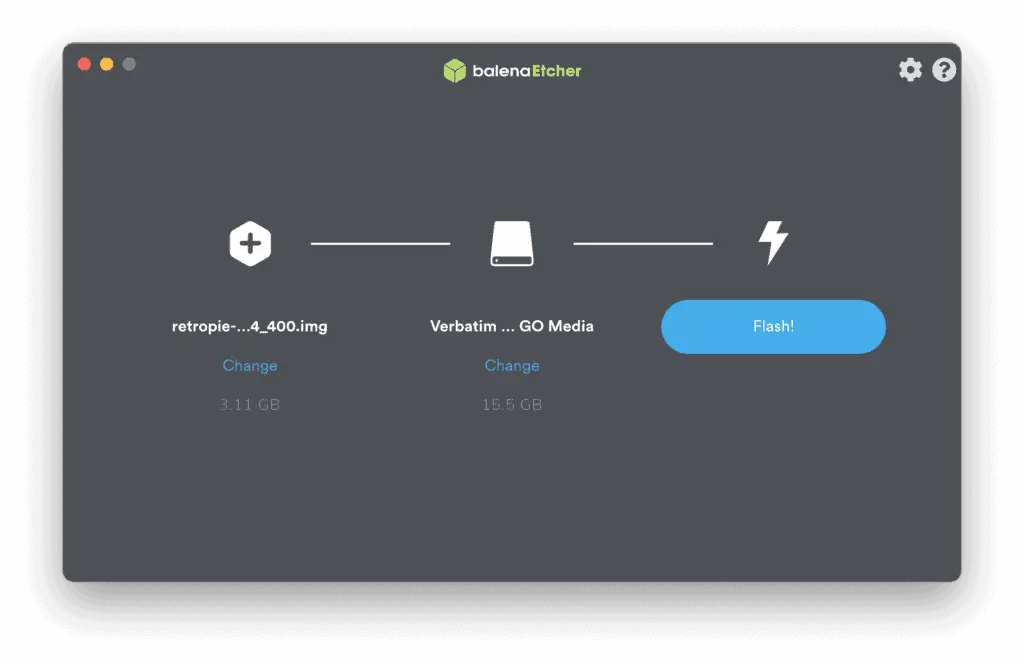

Balena Etcher is the best tool for writing Disk images to USB sticks and SD cards for use in a Raspberry Pi. Flash the downloaded RetroPie image to your Raspberry Pi’s SD card and make a cup of coffee – it may take a few minutes.

retropie 3

When the image has been successfully written, you can remove the device – it’s ready to go.



retropie 27

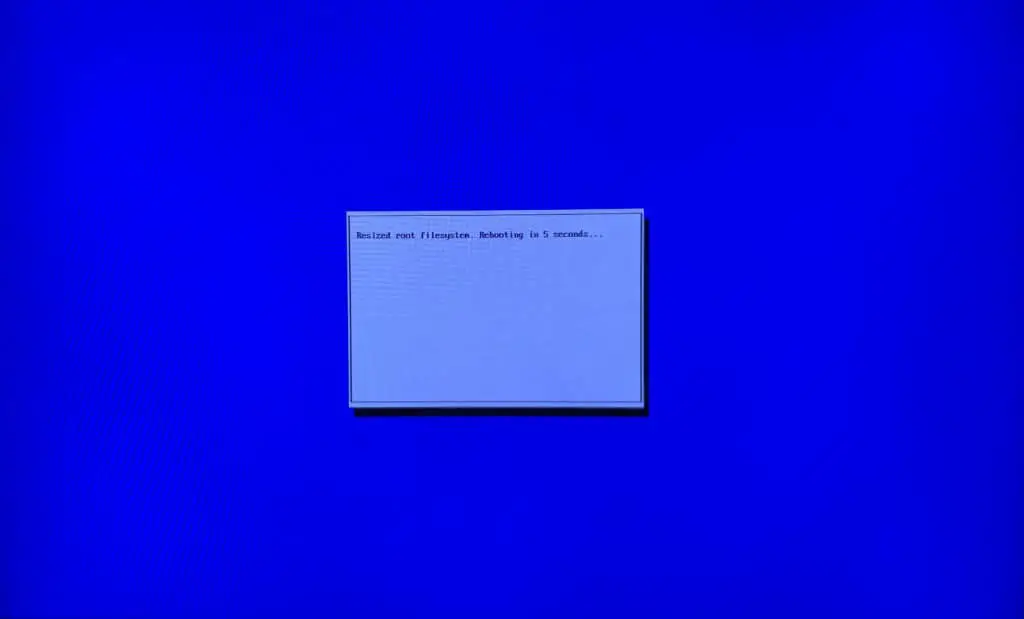

Insert the SD card back into your Raspberry Pi and wait a few minutes (again) for the file system to resize.



retropie 6 1

RetroPie is based on Linux, so you’ll see the usual boot information as it starts up.



retropie 26



Configuring RetroPie

The RetroPie splash screen will appear while things finish loading up.

retropie 7

Now to configure game controllers.



retropie 8

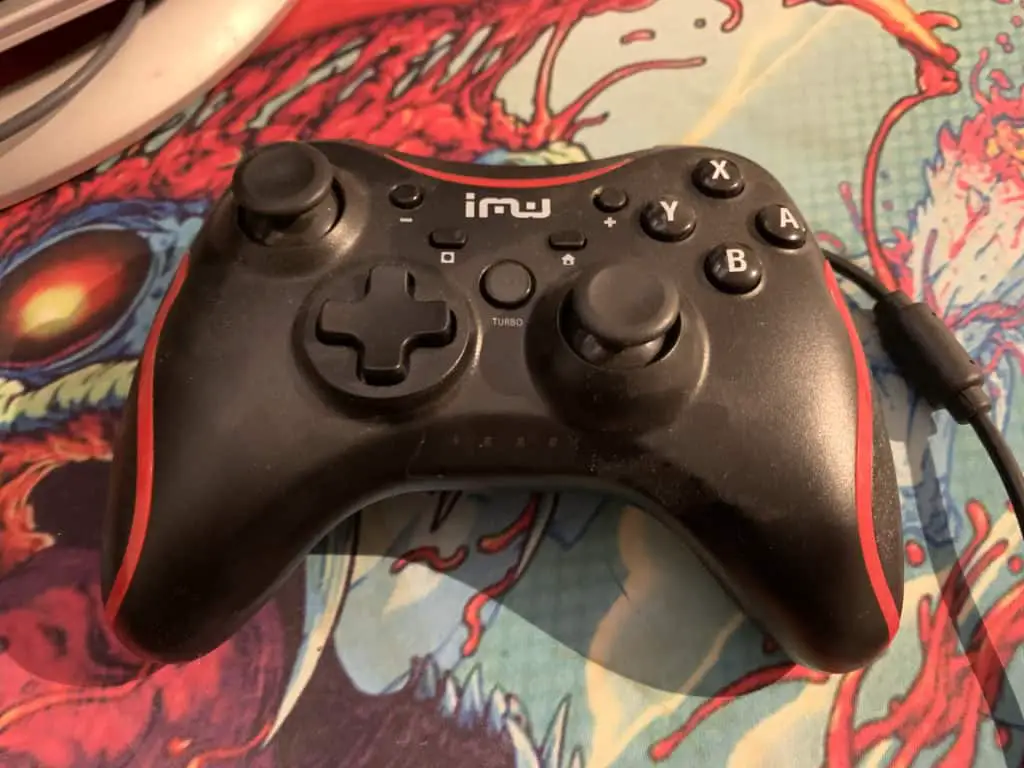

I’m using a USB Nintendo Switch controller, which I picked up online for about $10. Most wired USB X-Box One or Nintendo Switch controllers should be compatible with RetroPie.



retropie 9

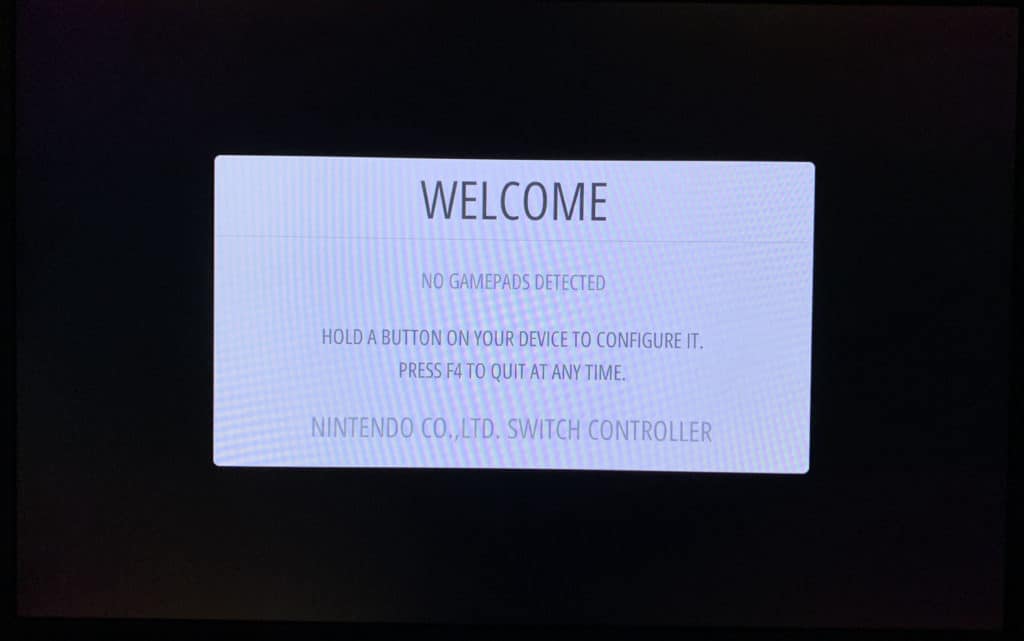

Once your controller is plugged in, RetroPie will detect it. Next, hold down any button on the controller to trigger the controller configuration process.



retropie 10

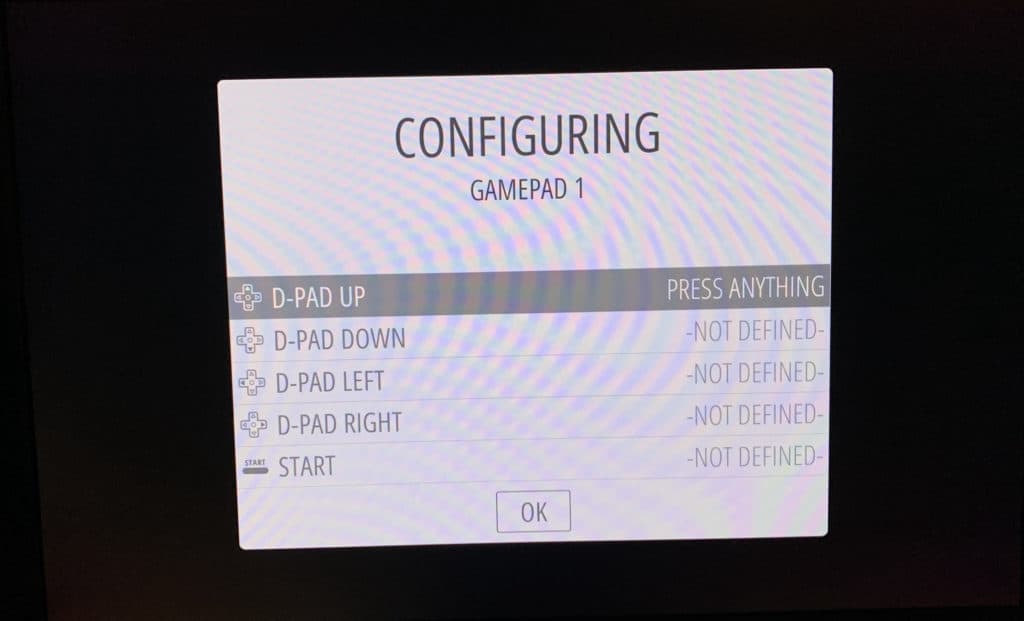

Press buttons on the controller to assign them to the button RetroPie will be emulating for your consoles. Watch out here – if you press the wrong button on your controller, there’s no way to go back and correct it other than rebooting the console. It’s a bit frustrating.



retropie 11

…There are a lot of buttons to configure…



retropie 12

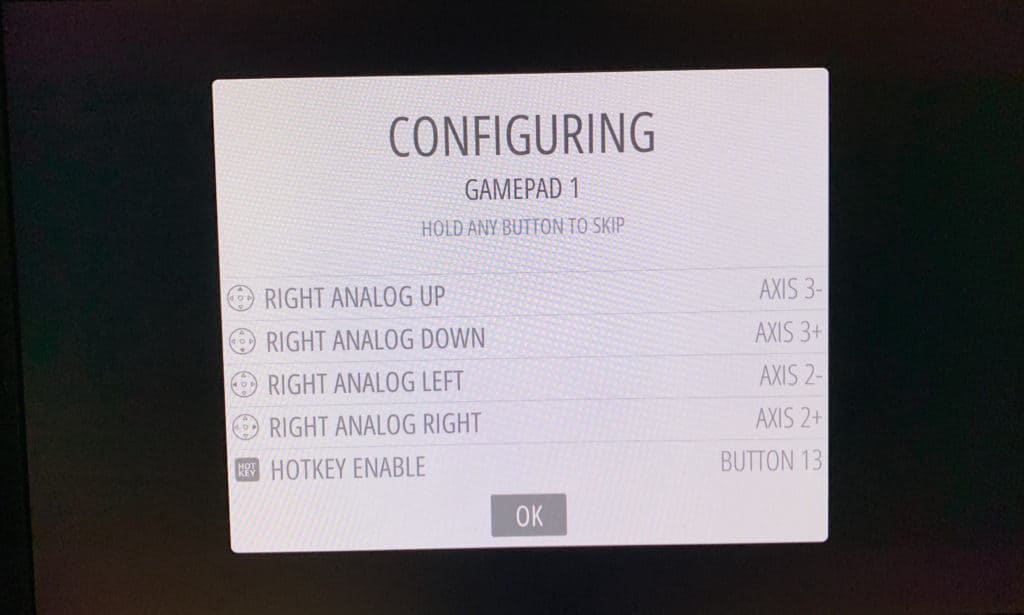

The ‘HotKey Enable’ button is a bit ambiguous – I usually just assign it to the SELECT button equivalent, so it’s out of the way.



Adding ROMS to RetroPie

retropie 13

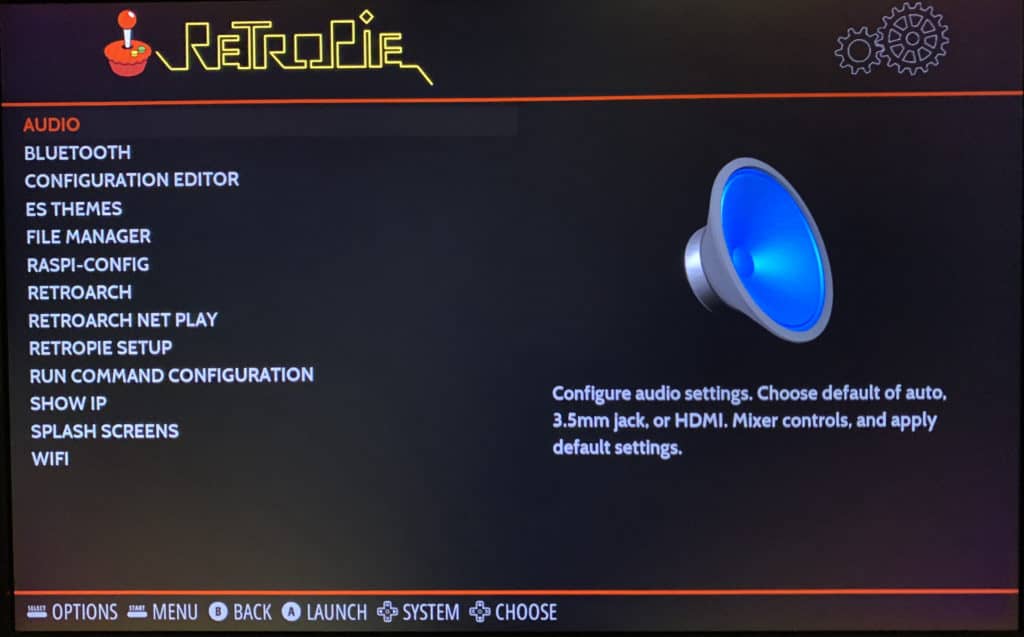

The controller’s configured, so we can take a look around RetroPie. Unfortunately, there’s not much to see other than this configuration screen as no games have been added yet.
The ‘Show IP’ Option is useful if you want to load ROMS onto your Pi via a network.



retropie 14

I’ll be loading them from a USB stick.

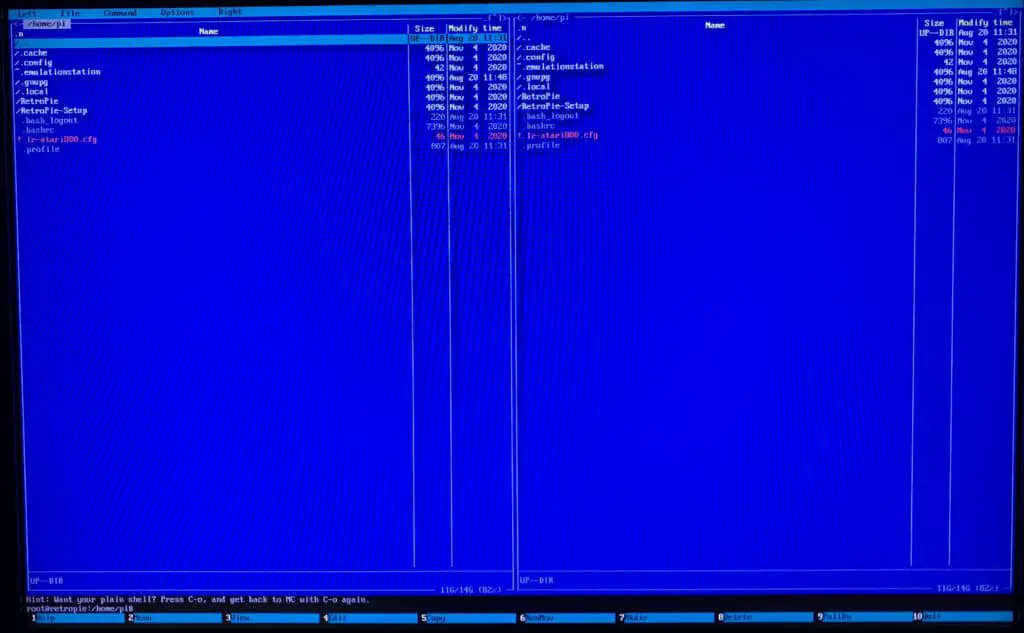

The File Manager is the easiest way to do this.
Be warned – you’ll want to use a USB keyboard to navigate here.



retropie 4 e1635711583393

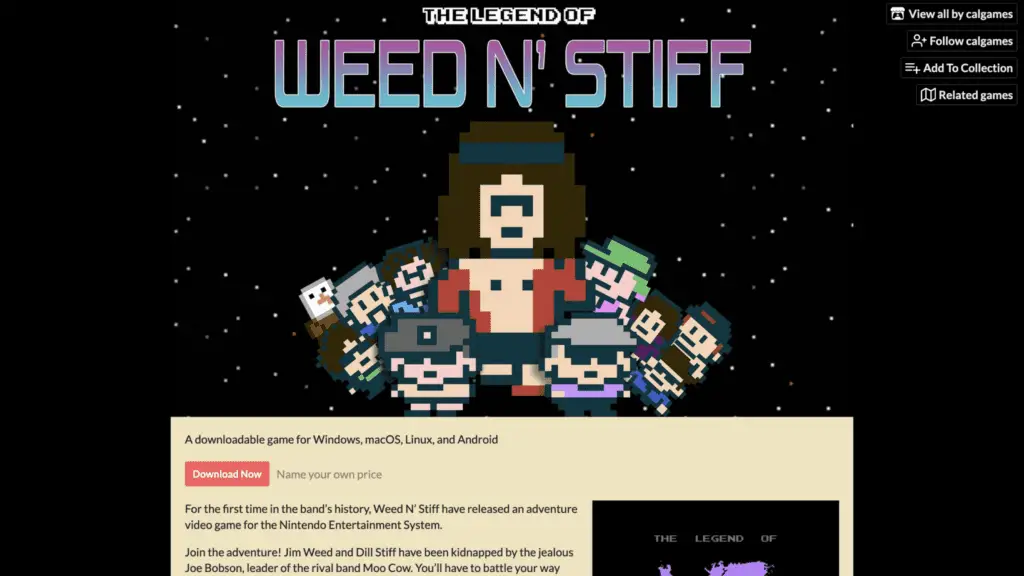

I’ll need a game to load into RetroPie. itch.io is an online community for indie game developers.  Some are generous enough to make their games free, and some are still making games for retro consoles – perfect! I’ve chosen the oddly named ‘Legend of Weed and Stiff.’



retropie 15

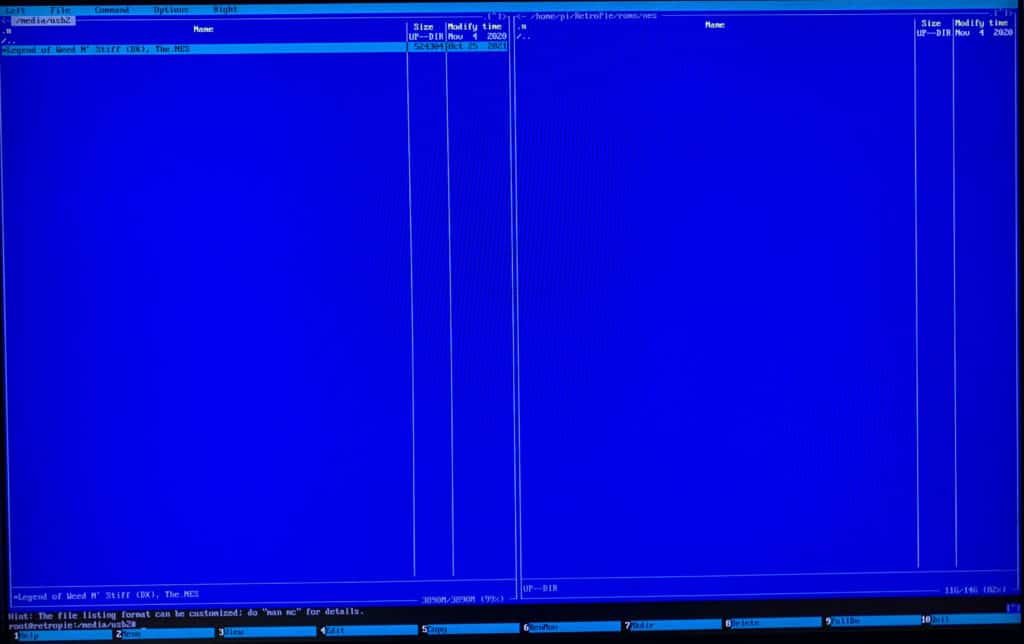

Copying the downloaded ROM to RetroPie. On the left side, I’ve navigated to my USB stick in the /media/ folder.
On the right side, I’ve navigated to /home/pi/RetroPie/ROMs/ and then to the folder for the game console the ROM is for – in this case, NES.



retropie 16

Pressing the F5 key brings up the file copy dialog. It’s all pretty self-explanatory from there.



retropie 17

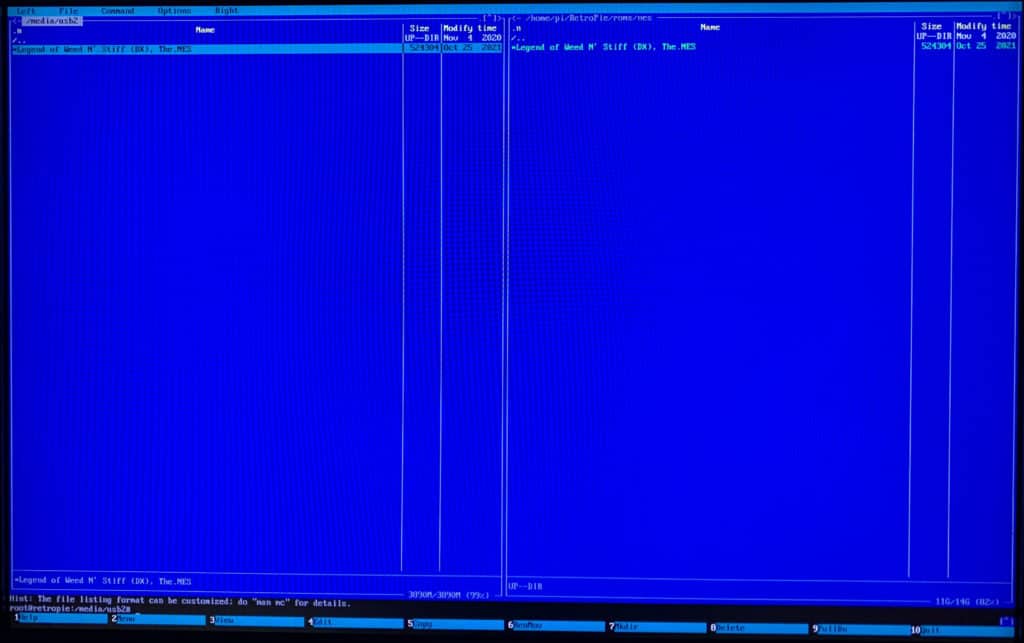

When the file has been copied successfully, you’ll see it in both folders. Multiple files can be selected for copying; it’s a quick way to copy your entire homebrew ROM collection from a USB stick rather than mucking about with network configuration.



retropie 18

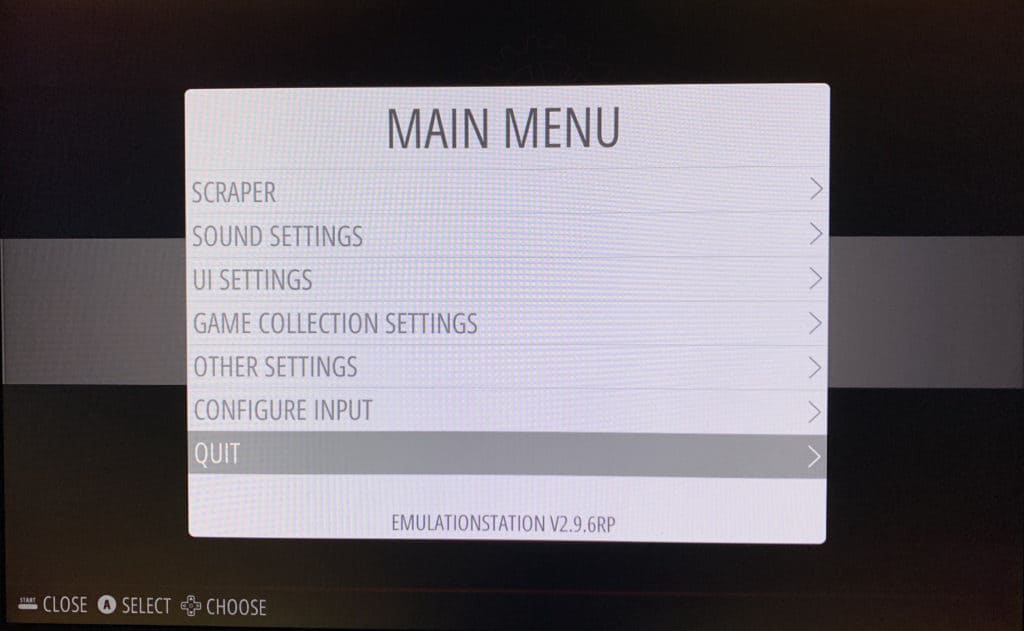

RetroPie scans for new ROMs each time it starts. Exit the file manager and press the START button to bring up the main menu.



retropie 19

Select the ‘Quit’ option and then ‘Restart EmulationStation.’



retropie 20

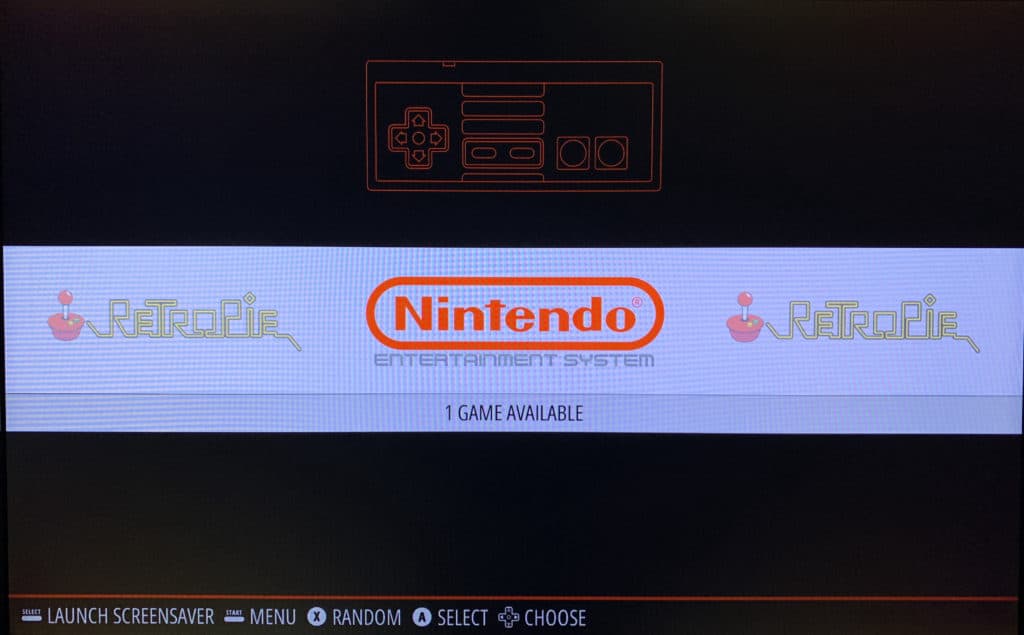

Once your Pi has rebooted, the menu item for the console you have copied ROMs for sill appear in the RetroPie menu.



retropie 21

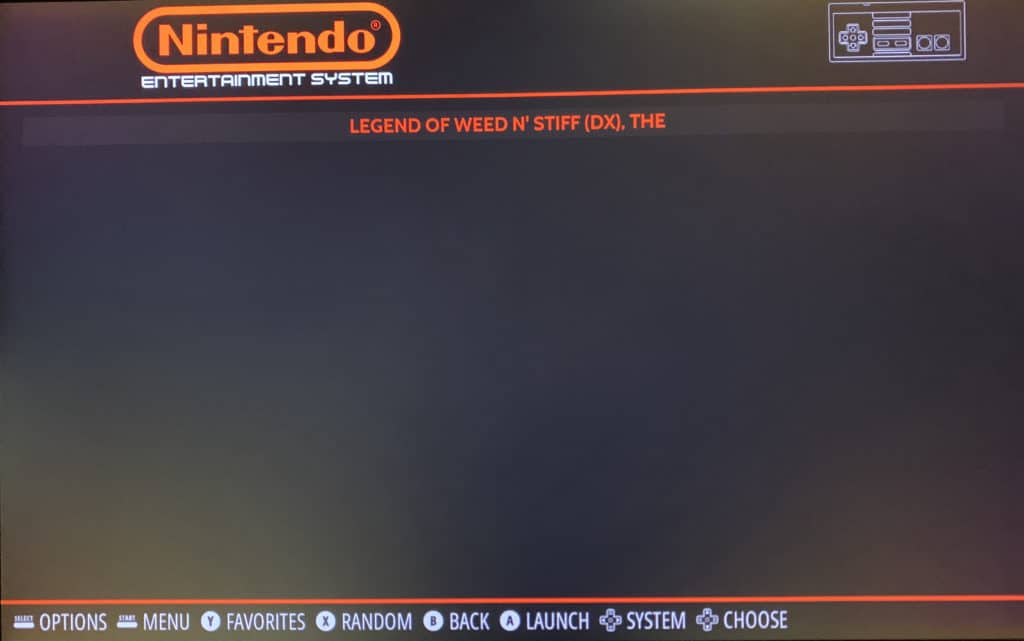

Selecting the game console from the menu will bring up the list of games available for that console.



retropie 22

The emulation will launch and…



retropie 23

Success! NES emulation is up and running.

retropie 24

retropie 25

Everything is working as it should be! RetroPie is a quick and easy way to get an emulation box up and running with support for a huge number of retro consoles.

Game ROMs for many retro consoles can be found from many homebrew developers online.

If you’re feeling especially adventurous, You can also develop your own games.  GB Studio is a neat game development tool that lets you make your own classic GameBoy games with a simple interface – it’s worth checking out!

retropie 5 1 e1635712320497
